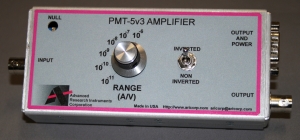

PMT-5 is a low noise DC coupled current to voltage amplifier with a large span of input sensitivities: 10pA/V to 1?A/V The bandwidth is limited to 300kHz at 1?A/V. |
 |

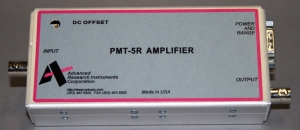

PMT-5R is even more sensitive :1pA/V to 1?A/V with remotely controlled sensitivity. Typical application is a computer controlled data acquisition and control. |
 |

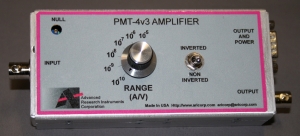

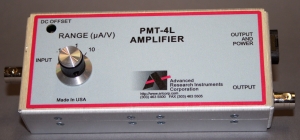

PMT-4 is a low noise, high speed version of the PMT-5. Sensitivities : 100pA/V to 10?A/V. Bandwidth: DC to 3.5MHz at 10?A/V range. |
 |
TDC-30 is an FET based low noise DC to 20MHz transimpedance amplifier featuring only 160 nAp-p full bandwidth input equivalent noise and 114db gain [2µA/V]. |
 |
TDC-50 is an FET based low noise DC to 50MHz transimpedance amplifier featuring only 400 nAp-p full bandwidth input equivalent noise and 100db gain [10µA/V]. |
 |
TDC-100 is an FET based low noise DC to 100MHz transimpedance amplifier featuring only 2 µAp-p full bandwidth input equivalent noise and 80db gain [100µA/V]. |
 |
DC-100 is a low noise transimpedance amplifier featuring 60db gain [1mA/V] and 100MHz bandwidth with only 1 mVp-p full bandwidth output noise and 50 ohm input/output impedance. The DC-100 will produce 20 db gain in a voltage amplifier mode. The voltage gain is 10X or 20dB. |
 |
V-100-40dB is a voltage amplifier with 100X gain or 40dB. The bandwidth: DC to 100MHz. |
| PMT-4v3 | PMT-5v3 | PMT-5R | TDC-30 | TDC-50 | TDC-100 | DC-100 | V-100-40dB | |
|---|---|---|---|---|---|---|---|---|
| Input Range | 10-10 to 10-5 A/V | 10-11 to 10-6 A/V | 10-12 to 10-6 A/V | 2µA/V | 10µA/V | 100µA/V | 1mA/V | 200µA/V |
| Range Selection | 6 position rotary switch | 6 position rotary switch | remote by 3 TTL logic lines | Fixed | Fixed | Fixed | Fixed | Fixed |
| Input Impedance | 1 k ohm | 1 k ohm | 1 k ohm | 50 ohm | 50 ohm | 50 ohm | 50 ohm | 50 ohm |
| Output Range | ±10V | ±10V | ±10V | ±2V (50Ω termination) | ±2V (50Ω termination) | ±2V (50Ω termination) | ±2V (50Ω termination) | ±2V (50Ω termination) |
| Output Impedance | 100 ohm | 100 ohm | 100 ohm | 50 ohm | 50 ohm | 50 ohm | 50 ohm | 50 ohm |
| Power Requirement | ±15 VDC, 50 mA | ±15 VDC, 50 mA | ±15 VDC, 50 mA | ±15 VDC, 50 mA | ±15 VDC, 50 mA | ±15 VDC, 50 mA | ±15 VDC, 50 mA | ±15 VDC, 50 mA |
| Power Connector | 9 pin Mini D | 9 pin Mini D | 9 pin Mini D | 9 pin Mini D | 9 pin Mini D | 9 pin Mini D | 9 pin Mini D | 9 pin Mini D |
| Signal Connectors | BNC | BNC | BNC | BNC | BNC | BNC | BNC | BNC |
Download the PMT-4V3 data sheet as a PDF file.
Download the PMT-5V3 data sheet as a PDF file.
Download the PMT-5R data sheet as a PDF file.
Download the TDC-30 data sheet as a PDF file.
Download the TDC-50 data sheet as a PDF file.
Download the TDC-100 data sheet as a PDF file.
Download the DC-100 data sheet as a PDF file.
Download the V-100-40dB data sheet as a PDF file.
| Domestic | International | |
| PMT-4 | $850.00 | $1,062.00 |
| PMT-5 | $850.00 | $1,062.00 |
| PMT-5R | $1,050.00 | $1,312.00 |
| TDC-30 | $694.00 | $868.00 |
| TDC-50 | $694.00 | $868.00 |
| TDC-100 | $694.00 | $868.00 |
| DC-100 | $390.00 | $488.00 |
| V-100-40dB | $694.00 | $868.00 |
